high voltage switch cabinet

high voltage switch cabinet

Rated Voltage 12 KV
Rated Current 630A
Frequency 50HZ
Main Circuit Resistance ≤400ΜΩ
product details:

Introduction of High Voltage Switch Cabinet:

GG-1A(F) Anti-error high-voltage switchgear is a fixed high-voltage switchgear with anti-error device, suitable for AC 50HZ, rated voltage 3.6~10KV, rated current up to 1000A, and Used as a complete set of indoor power distribution high-voltage equipment for receiving or distributing electric energy in a single busbar system with a rated breaking current up to 31.5KA.

This switchgear complies with the national standard GB3906 "3-35kV AC metal-enclosed switchgear". GB/T11022 "Common technical requirements for high-voltage switchgear and control equipment standards". and the national standard IEC60298 "AC metal-enclosed rated voltage above 1kV and 52kV and below Switchgear and Control Equipment". IEC60694 "High Voltage Switchgear and Control Equipment Common Clause" requirements.

Normal working conditions:

1. The ambient air temperature does not exceed 40℃. and the average value measured within 24h does not exceed 35℃.and the minimum ambient air temperature is 25℃.

2. The altitude does not exceed 1000m. and the altitude does not exceed 2000m under special conditions of use.

3. The surrounding air is not significantly polluted by dust, smoke, corrosive and soluble gases, steam or salt spray.

4. Relative humidity: The average value of relative humidity measured within 24h does not exceed 95%. the average value of water vapor pressure measured within 24h does not exceed 2.2KPa. and the average monthly relative temperature does not exceed 90%. The average vapor pressure does not exceed 1.8KPa.

5. When the equipment is installed, the inclination from the vertical does not exceed 5°.

6. The equipment should be installed in a place without severe vibration and impact.

Types of High Voltage Switch Cabinet

HXGN-12 Ring network switchgear equipment

HXGN-12 fixed AC metal closed ring network switchgear (Also name as ring network cabinet switchgear), suitable for industrial and mining enterprises, residential quarters, high-rise buildings and school parks and other power distribution systems. as an indoor AC three-phase 12KV, 50HZ ring network power supply unit and terminal power distribution equipment. It can open or close the rated load current and the no-load current of the transformer. and open or close the overhead line, cable line or capacitive current of a certain distance. The load switch fuse combination electrical cabinet can break the rated short-circuit current at one time. In the power system. it is used for the protection of power distribution equipment, the distribution and control of electric energy, and has a perfect "five prevention" locking function.

XGN-12 box type fixed AC metal enclosed switchgear

XGN-12 box-type fixed-type AC metal-enclosed switchgear (hereinafter referred to as switchgear), used in 12KV and below three-phase AC 50Hz system to receive and distribute electric energy. especially suitable for frequent operations. The system is a single bus (single bus with bypass and double bus structure can be derived).

XGN-12 box-type fixed metal-enclosed switchgear is a prototype product derived from ordinary switchgear suitable for use in high-altitude areas. and has a complete "five-proof" locking function.

GG-1A (F) type fixed high voltage switch cabinet

GG-1A(F) Anti-error high-voltage switchgear is a fixed high-voltage switchgear with anti-error device, suitable for AC 50HZ, rated voltage 3.6~10KV, rated current up to 1000A, and Used as a complete set of indoor power distribution high-voltage equipment for receiving or distributing electric energy in a single busbar system with a rated breaking current up to 31.5KA.

This switchgear complies with the national standard GB3906 "3-35kV AC metal-enclosed switchgear". GB/T11022 "Common technical requirements for high-voltage switchgear and control equipment standards". and the national standard IEC60298 "AC metal-enclosed rated voltage above 1kV and 52kV and below Switchgear and Control Equipment". IEC60694 "High Voltage Switchgear and Control Equipment Common Clause" requirements.

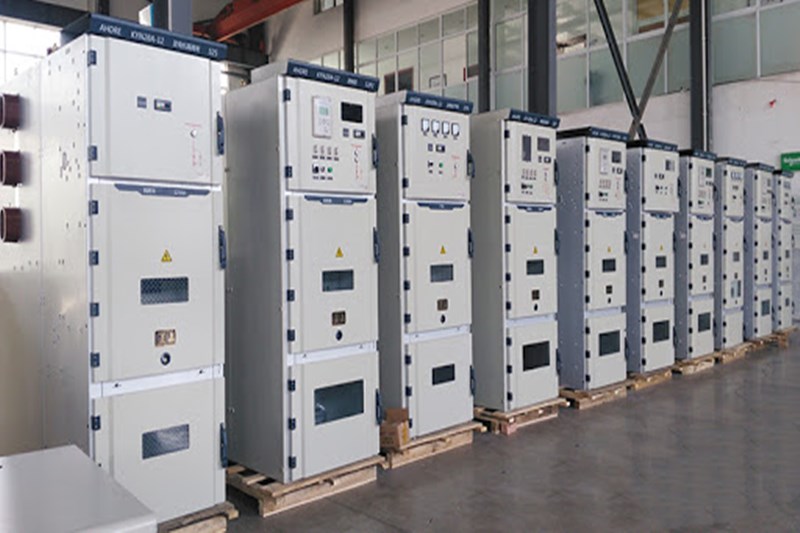

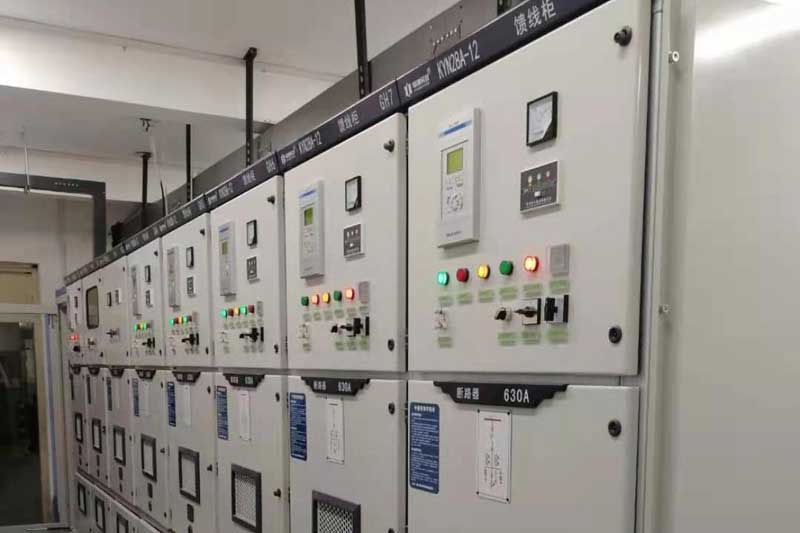

KYN28A-12 (GZS1) type central metal armored switch cabinet

KYN28A-12 (GZS1) type indoor metal armored withdrawable switchgear is a complete set of power distribution equipment for 3~10kV three-phase AC 50Hz single bus and single bus section system. Mainly used in power plants, small and medium-sized generators electricity sending, power distribution in industrial and mining enterprises, and secondary substations of electrical systems, such as power reception, power transmission, and large-scale high-voltage motor starting.

HXGN15-12(L) indoor AC high-voltage sulfur fluoride ring network switchgear

HXGN15-12(L) indoor AC high-voltage sulfur fluoride ring network switchgear (hereinafter referred to as "ring network cabinet") is a new generation of sulfur hexafluoride load switch as the main switch and the whole cabinet is air-insulated, suitable for distribution Electrically automated, compact and expandable metal sealing switchgear.

The ring network cabinet has the characteristics of simple structure, flexible operation, reliable interlocking, etc., and can provide satisfactory technical solutions for various applications and different user requirements. The use of sensing technology and the latest protection relays, coupled with advanced technical performance and lightweight and flexible assembly solutions, can fully meet the ever-changing requirements of the market.

Parameter of high voltage switch cabinet:

No Item Unit Value
1 Rated voltage KV 12
2 Main busbar rated current A 630
3 Rated current A 630
4 Frequency Hz 50 (60)
5 Rated short-time withstand current KA 20
6 Rated short-circuit duration S 4
7 Rated peak withstand current KA 50
8 Rated short-circuit making current KA 50
9 Rated active load breaking current A 630
10 Rated closed loop breaking current A 630
11 Rated cable-charging breaking current A 10
12 Grounding switch rated short-time withstand current KA 20
13 Grounding switch rated short-time duration S 4
14
Rated insulation level
Grounding switch rated peak withstand current KA 50
    1min power frequency withstand voltage (effective value) KV (Alternately. Relatively )42;(fracture)48
15 Lightning impulse withstand voltage (peak value) KV (Alternately. Relatively)75;(fracture)85
16 Main circuit resistance μΩ ≤400
17 Mechanical life Load switch 5000
    Earthing switch 2000
18 Auxiliary circuit 1min power frequency withstand voltage KV 2
19 Rated gas pressure (20℃ gauge pressure) Mpa 0.04
20 Annual gas leakage rate   1%
21 Protection level   IP3X

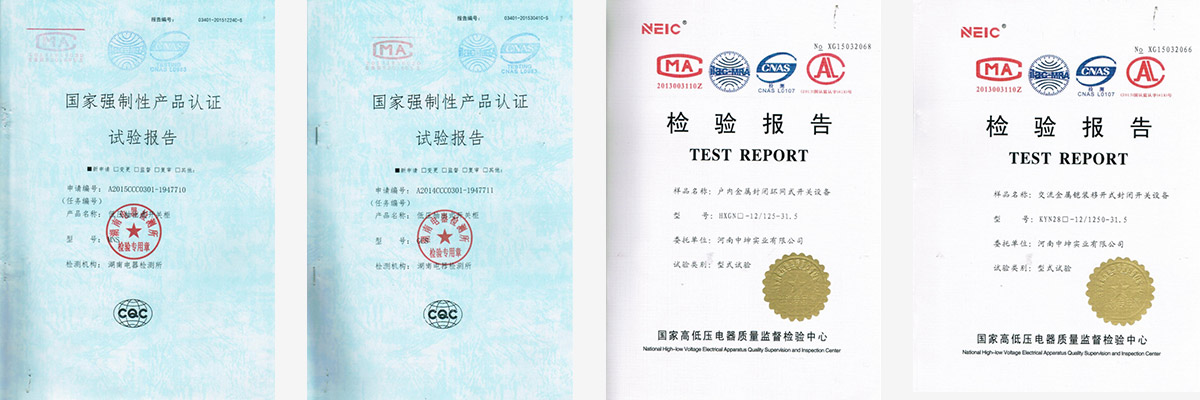

Certification of Switch Cabinet:

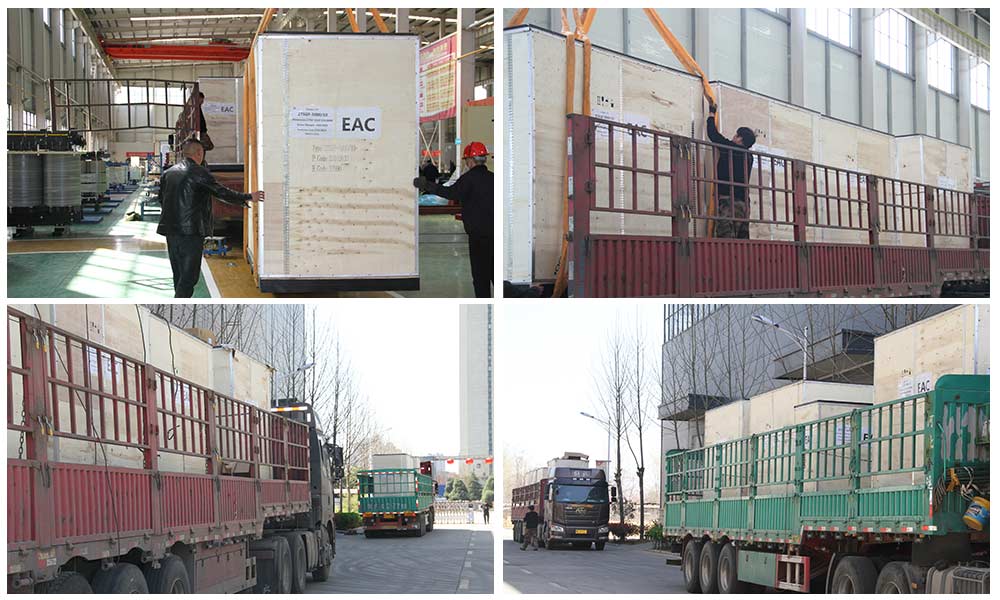

Package of Switch Cabinet:

Video of Switchgear
