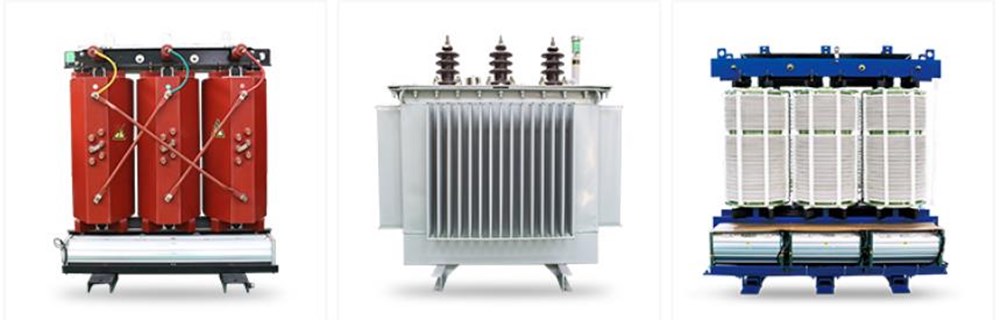

Type Dry Type Transformer
Oil Type Transformer
Phase Shifting Transformer
Volatage(KV) 0.4KV-38.5KV
Capacity(KVA) 0.4KVA-21500kVA
Connection Group Yyn0 Dyn11,Yd11, Ynd11
Insulation Class B,F,H
product details:

Electrical Disribution Transformer Description:

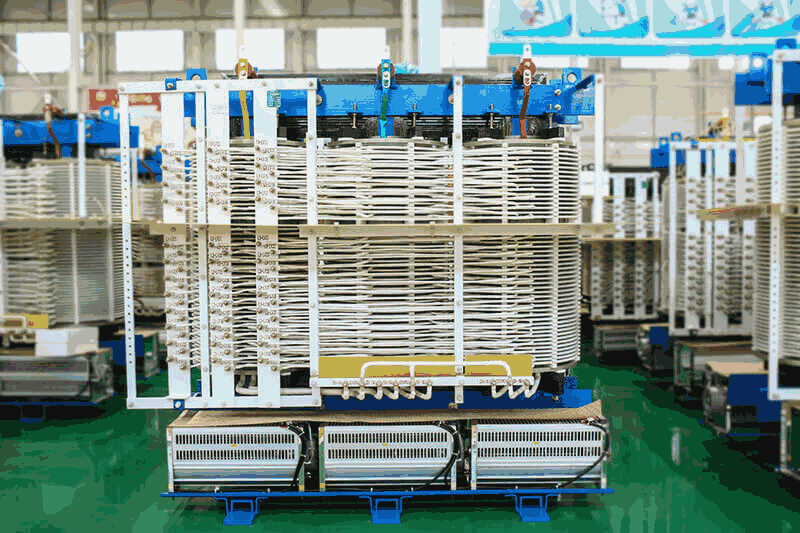

1.Dry Type Transformer

1.1 Product Range of Dry Type Transformer

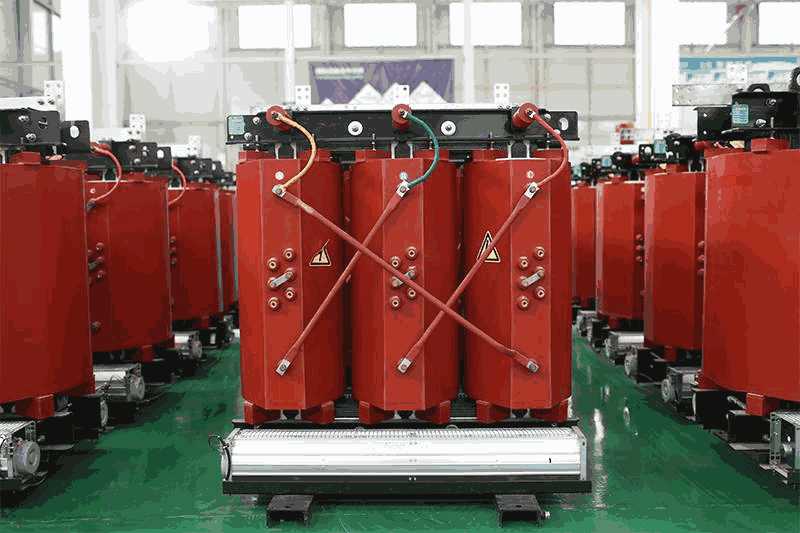

ZTelec Group can produce a variety of epoxy resin casting transformers with a voltage rating of 35KV or less and a capacity of 3150KVA or less. The variety includes SC10, SCB10 series and SC11, SCB11 series. The product is widely used in power transmission and transformation systems, such as hotels, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.

1.2 Features of Dry Type Transformer

1. Low consumption, energy saving, low noise, no maintenance, no pollution and can be directly installed in the load center.

2. Strong resistance to short circuit, low partial discharge, high reliability.

3. Strong cooling capacity, can be operated under 140% rated load in the condition of forced air cooling.

4. Corrosion resistance, moisture resistance, flame resistance, fire resistance, can be operated in high humidity and other harsh environments.

5. Equipped with intelligent temperature controller, which can be monitored and controlled centrally to ensure the reliable operation of the transformer.

2. Oil Type Transformer

2.1 Product Range of Oil Type Transformer

ZTelec Group can produce a variety of oil-immersed transformers with a voltage rating of 35KV or less and a capacity of 12500KVA or less. The variety includes S9, S11 series and S13, S15 series of energy-saving products. The product is widely used in industrial and mining enterprises, agriculture, civil construction and other distribution sites as well as places where there are more oil and chemical substances in oil and chemical industry.

2.2 Features of Oil Type Transformer

1. The equipment adopts a new type of insulation structure to improve the ability to withstand short-circuits;

2. Spiral coil with longitudinal oil passage has a better internal heat dissipation;

3. High efficiency, low loss, can save a lot of power and operating costs.

4. The surface of the corrugated oil tank is coated with three anti-paint after oil removal, rust removal, and phosphating. It is suitable to be used in metallurgy, petrochemical, and mining environments.

Parameter of Power Transformer

  Rated Capacity HV LV Connection Group Short Circuit  Resistance No Load Loss Load Loss 120℃ No Load Current
(KVA) (KV) (KV) (%) (W) (W) (%)
Dry and Oil Type  30 6
6.3
10
10.5
11
20
22
24
30
33
35
38.5
0.4 Dyn11
Yyn0
6 380 1210 3.2
63 520 1550 2.6
100 630 2090 2.4
125 710 2450 2.2
200 880 3330 1.8
250 990 3800 1.6
400 1380 5420 1.4
500 1620 6650 1.4
800 2160 9120 1.2
1250 2840 12730 0.9
2000 3830 18240 0.9
2500 4460 24850 0.9
Oil Type 3150-6300 35-38.5 3.15-10.5 Yd11 43562 3040-5250 23090-35060 1.5-0.8
8000-31500 3.15-11 Ynd11 43654 7200-20220 38480-112800 0.54-0.32

Test Instruments:

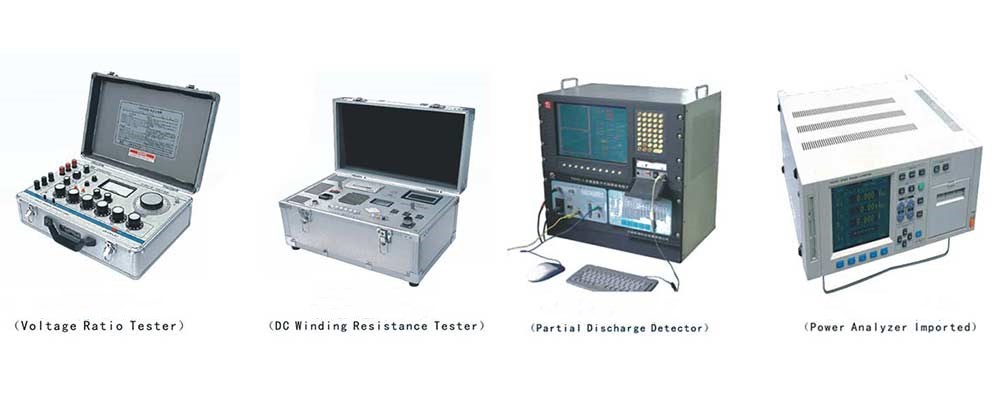

Inspection and testing is the key to ensure the quality of products. ZTelec Group employs the most rigid production inspection criteria at each manufacturing stage to eliminate unqualified products by utilisting the most advanced inspection instruments from around the word. To ensure the best quality products could be delivered to users.

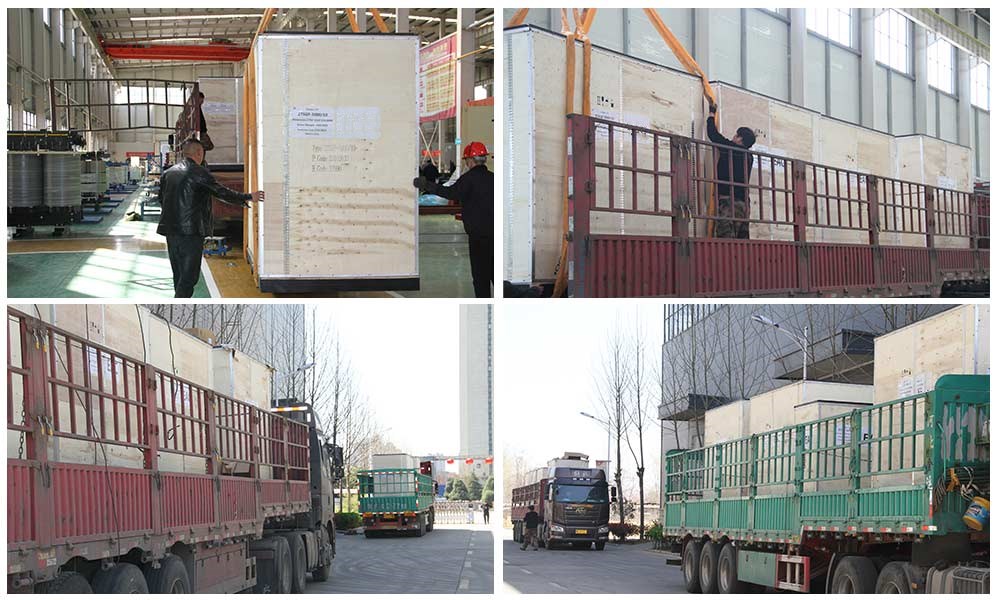

Package of transformers:

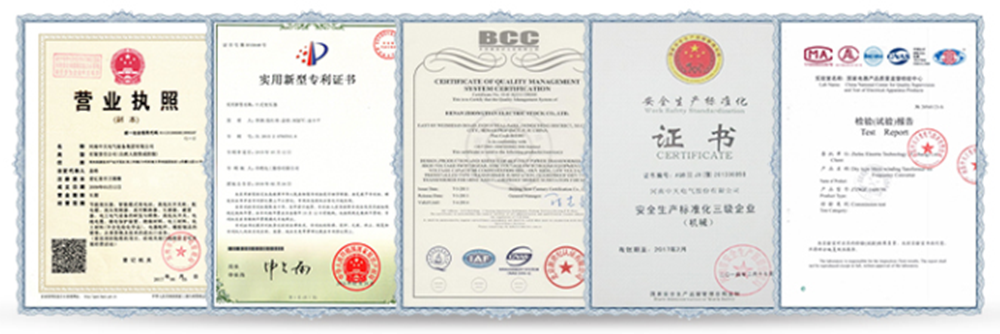

Certification of  transformers:

Video of transformers:

leave message to us!

If you are interested in our products, please feel free to contact us!or send email to us!Email address: info@ztelecgroup.com
