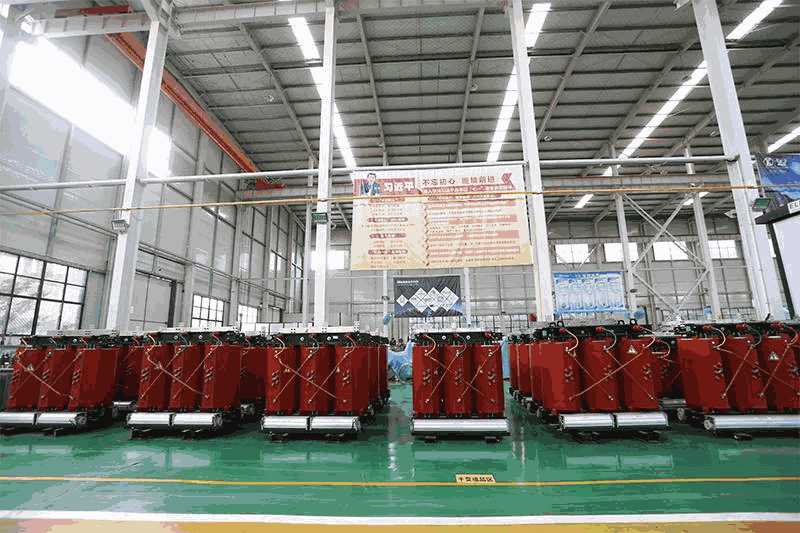

dry type transformer

dry type transformer

type Dry Type Transformer
Volatage(KV) 0.4KV-38.5KV
Capacity(KVA) 30KVA-2500kVA
Connection Group Yyn0 Dyn11
Insulation Class B,F,H
product details:

Description of Dry type transformers

Our company mainly produces dry-type transformers below 35kV and below 3150kva, including SC10, SCB10, SC11, SCB11 series products, which are widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, and commercial centers , Residential areas, subway smelting power plants and other important places.

Working principle of Dry type transformers:

Dry type transformers is used to reduce the 35kv grid power to 400v power distribution for users. It reduce 10KV power transmission and transformation links to reduce operating costs and multi-level substation construction. By optimizing the structure of the high-voltage coil, the series improves the distribution of voltage and capacitance between layers which improve the product’s ability to withstand atmospheric overvoltage, operating overvoltage and also improves the electric field distribution. The partial discharge of products will be further reduced.

Anvantage of Dry type transformers:

1.Dry type transformers have low loss and good power saving which brings economical operation.
2.They are flame-retardant, explosion-proof, non-polluting, maintenance-free and can be installed in the load center to reduce investment costs and saving costs.
3.The dry type distribution transformer has a small partial discharge.
4.The coil does not absorb moisture and dust which has high mechanical strength and good reliability.
5.Dry type power distribution transformers are short-circuit resistant and have good lightning-impact resistance. If the user needs a temperature control and temperature display system what can be used with the temperature control system.

3. Technical Parameter of Epoxy Resin Cast Dry-Type Power Transformer

Executive Standard: IEC60076 & National Standard

HV:35/36/37/38.5   LV:0.4/0.415
Capacity(kva) Connection Group No-Load Loss
W
On-Load Loss
W
No-Load Current
%
Short-Circuit Impedance
%
50 Yyn0
Dyn11














450 1420 2.3 6
100 630 2090 2 6
160 790 2810 1.5 6
200 880 3320 1.5 6
250 990 3800 1.3 6
315 1170 4510 1.3 6
400 1370 5410 1.1 6
500 1620 6650 1.1 6
630 1860 7690 1 6
800 2160 9120 1 6
1000 2430 10400 0.75 6
1250 2830 12700 0.75 6
1600 3240 15400 0.75 6
2000 3820 18200 0.75 6
2500 4450 21800 0.75 6

4.Test Instruments:

Inspection and testing is the key to ensure the quality of products. ZTelec Group employs the most rigid production inspection criteria at each manufacturing stage to eliminate unqualified products by utilisting the most advanced inspection instruments from around the word. To ensure the best quality products could be delivered to users.

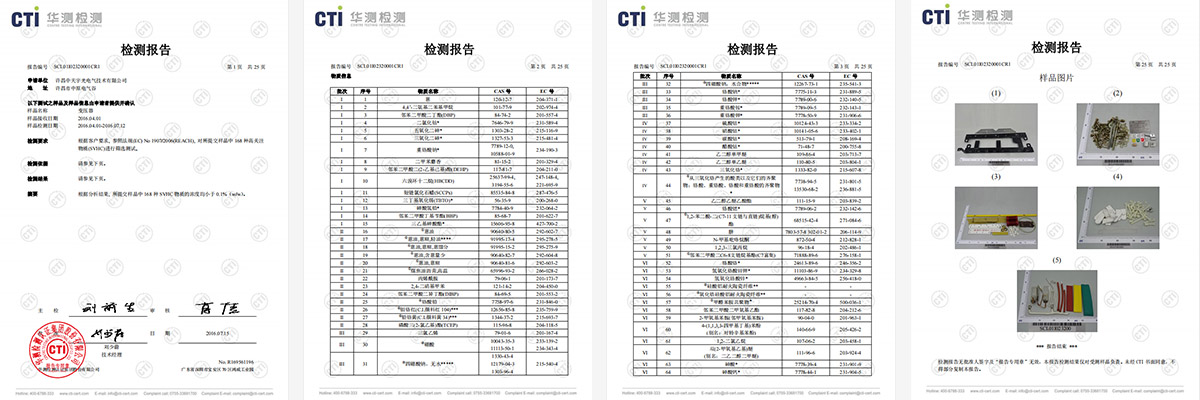

5.Certification of Dry type transformers:

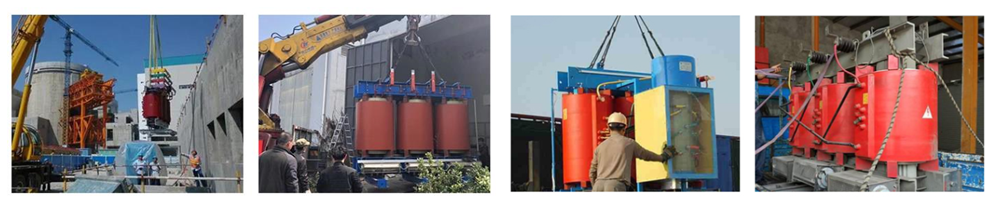

6.Package of   Dry type transformers:

7.Video of Dry type transformers:
