phase shifting rectifier trans

phase shifting rectifier trans

type Phase Shifting Transformer
Volatage(KV) 6KV-10KV
Capacity(KVA) 315KVA-1600kVA
Phase Shifting Angle 0°,12°,24°,36°,48°or others
Insulation Class H
product details:

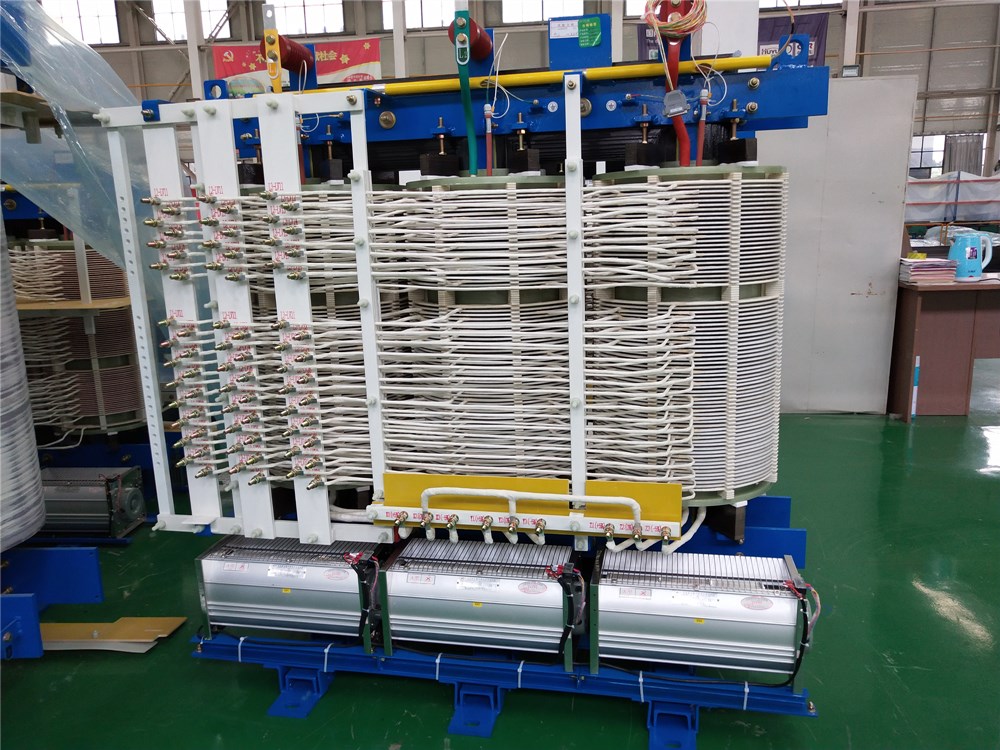

1.Phase shifting rectifier transformer description:

The phase shifting transformeris a device that converts an alternating voltage according to the principle of electromagnetic induction. The transformer generally has two independent windings, an initial line and a secondary one, and the two windings share a core.The primary winding of the transformer is connected to the AC power source, and an alternating current flows in the winding to generate a magnetic potential, so that there is an alternating magnetic flux in the closed core. The primary and secondary windings cut the magnetic lines of force, and the secondary frequency can sense the same frequency of alternating current.The turns ratio of the primary and secondary windings of the transformer is equal to the voltage ratio. Phase shifting transformers are mostly used on the input side of high-power inverters and high-power DC power supplies. The more the rectifier pulse number, the smaller the input current harmonics, and the smaller the harmonic pollution to the grid.

2.Application of Phase-Shifting Rectifier Transformer

It is suitable for electrical industry, petroleum, chemical industry, metallurgy, municipal water supply, waste water treatment, textile, paper making, pharmaceuticals, coal, cement, rolling mill (steel factory) and other industries.

3.Phase shifting rectifier transformer parameter:

Rated Capacity
(KVA)
Rated Voltage Output Voltage×
Group Number
Phase Shifting Angle Insulation Grade Reference Dimension
(L×W×H)
Reference Weight
(KG)
315 6KV+5%
or 10KV+5%
690V×15 or others 0°,12°,24°,36°,48°
or others
H Class 1480×820×1340 1320
400 1480×820×1420 1500
500 1530×820×1510 1750
630 1530×820×1580 2100
800 1590×940×1650 2450
1000 1680×920×1760 2950
1250 1710×920×1765 3400
1600 1780×940×1870 4250

4.Test Instruments:

Inspection and testing is the key to ensure the quality of products. ZTelec Group employs the most rigid production inspection criteria at each manufacturing stage to eliminate unqualified products by utilisting the most advanced inspection instruments from around the word. To ensure the best quality products could be delivered to users.

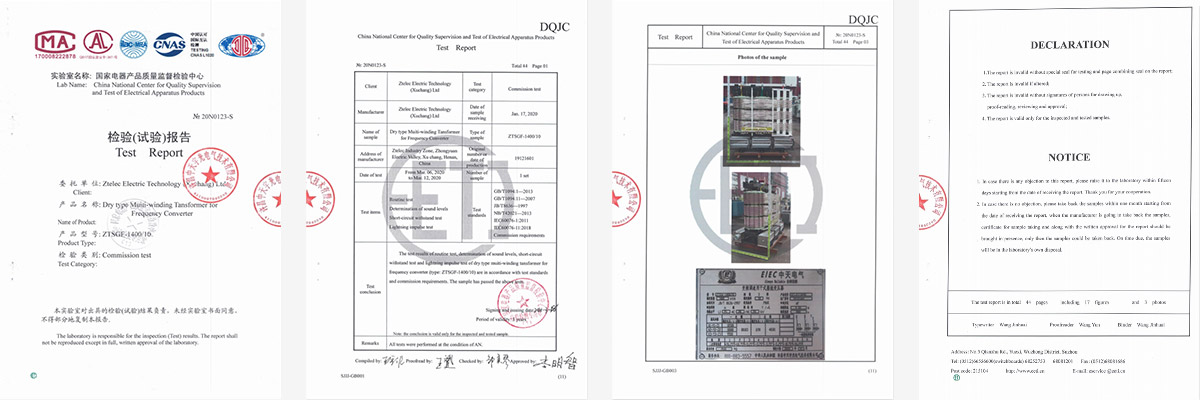

5.Certification of Phase shifting rectifier transformer

6.Package of Phase shifting rectifier transformer:

7.Video of Phase shifting rectifier transformer:
